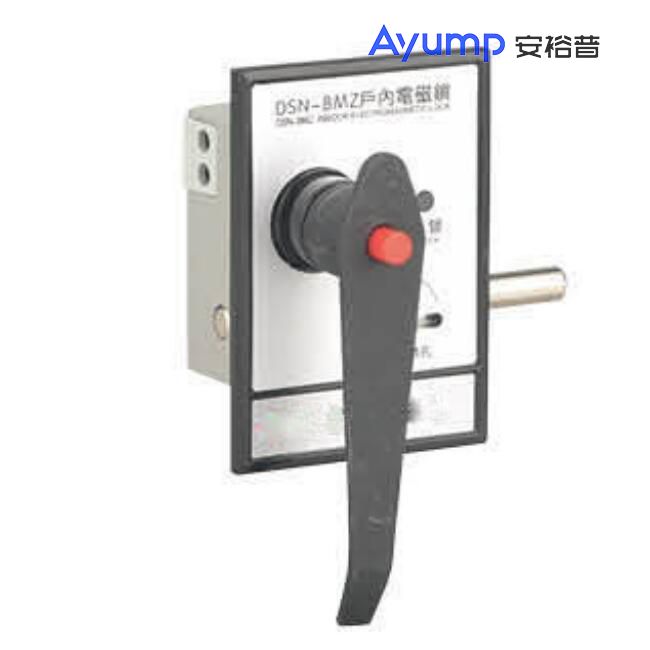

Electromagnetic Lock Series

Steps

◆Normal operation steps:

<> Press the button, the power is turmed on, the solenoid coil is energized, the moving iron core is released from the lock stopper, and the unlocking indicator light is on, indicating that the unlocking is allowed.

<> Turn the handle in the direction of unlocking (clockwise in the left direction and counterclockwise in the right direction). When the force is applied to the limit position, the bolt will automatically lock in the lock position, and the door can be opened. If it is not in the locked position, the bolt will automatically return to the locked position, which satisfies the "automatic reset" function. If the bolt is in the unlocked position, the handle should be manually tumned in the opposite direction of the unlocking, that is, the latch returns to the locked position. , thus satisfying the blocking state.

A, dial the button   B, pull the handle

◆Manual unlock steps:

<>Press the button, the power supply is forcibly cut off by the locking circuit, the unlocking indication is not bright, and the moving iron core is stuck with the locking bolt block, which will indicate that the unlocking is not allowed;

<>When special circumstances must be unlocked, remove the key and insert it into the unlocking space. Tum the key 90° in the direction of the panel to "one”or "stop” to push the moving iron core away from the locking bolt block;

Model Meaning

Note: The so-called left side insalltion or right side insallation, the system operator faces the locking object (such as the operating lever, the fixed part of the cabinet), the corresponding nsallaion position. When the electromagnetic lock is mounted on the locked object, it is instaled on the left side when the operator is facing the left side, and vice versa.
