S13-M.RL type 6 ~ 10kV double winding non excitation voltage regulating fully enclosed oil immersed distribution transformer

S13-M.RL-80 ~ 1600 / 10 fully sealed oil diffuse transformer is suitable for power systems with AC 50Hz and rated working voltage of 10kV and below. It is used as distribution transformer in petroleum, metallurgy, chemical industry, textile, light industry and other enterprises and places with large dust.

0771-3860772

products detial

What we can do ? different country different requirement all we can offer.

Mid-voltage ( kV)

3.6~35kv

(E.g. 35,33,24,22,20,18,15.75,13.8,13.2,12,11,10.5,10,7.2,6.6,6.3,6 etc.)

To Low voltage ( V)

100-660V

(E.g. 100,110,115,120,127,208,200,220,230,240,346,380,400,410,415,440,480,660 etc.)

Frequency (HZ)

50Hz or 60Hz

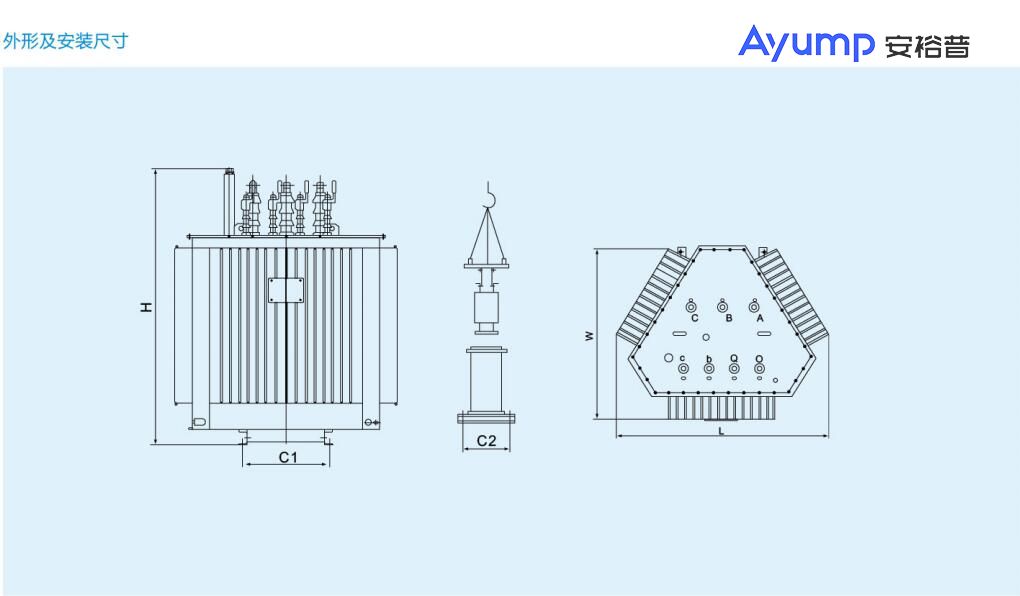

S13-M.RL 6~10kv double winding without excitation regulator fully enclosed oil immersed distribution transformer

1、 Overview

2、 Model and description

S13 MRL口 /口

口 - high voltage side electrical grade (kV)

口- rated capacity (kVA)

L-solid

R-coil core

M-fully sealed

13 - Design serial number

S-three phase

3、 Use environment

◆ the installation height shall not exceed 1000m above sea level;

◆ ambient temperature: - 40℃ ~ + 40℃

4、 Technical parameters

Rated capacity (kVA)	Voltage combination			Connect the group logo number	No load loss (kW)	Load loss (kW)	No load current (%)	Short circuit impedance (%)	Weight (kg)
Rated capacity (kVA)	HV(kA)	High pressure connection range	LV(kA)	Connect the group logo number	No load loss (kW)	Load loss (kW)	No load current (%)	Short circuit impedance (%)	Oil weight	Gross weight
30	6 6.3 6.6 10 10.5 11	士5%±2x2.5%	0.4	Yyn0 Dyn11				4	110	360
50									115	425
63					130	1310/1250	0.22		160	530
80					150	1580/1500	0.21		165	555
100					170	1890/1800	0.20		170	760
125					200	2310/2200	0.19		200	850
160					240	2730/2600	0.18		230	990
200					290	3200/3050	0.17		255	1125
250					340	3830/3650	0.16		305	1350
315					410	4520/4300	0.16		380	1620
400					480	5410/5150	0.16		400	1950
500					570	6200	0.15	4.5	420	2200
630					700	7500	0.15		530	2420
800					830	10300	0.14		660	2960
1000					970	12000	0.13		660	3140
1250					1170	14500	0.12		780	3760
1600									1200	5520
2000									1500	6050
2500									1300	5650
